Silverzone Reflective Foil Insulation

Fire Retardant Double Sided Foil with PE Bubble Close Cell Structure

Categories: , ,

Product Overview

In a traditional roof, the radiant energy is absorbed by the insulation and then the heat eventually transfers into the living space causing high energy bills and comfort issues. By “Breaking” this path of energy, 97% of the radiant energy is reflected back towards the roof.

Silverzone is a reflective foil with twin layers of aluminium separated by a layer of air. The foil reflects 97% of heat and deflects the external cold temperature while the layer of bubble keeps these surfaces separated. It is an extremely effective insulation. Silverzone has a special coating on it’s aluminium surfaces to stop oxidization and comes with a 15 year manufacturers warranty. The scrim reinforcing makes it a lot stronger than traditional building foils.

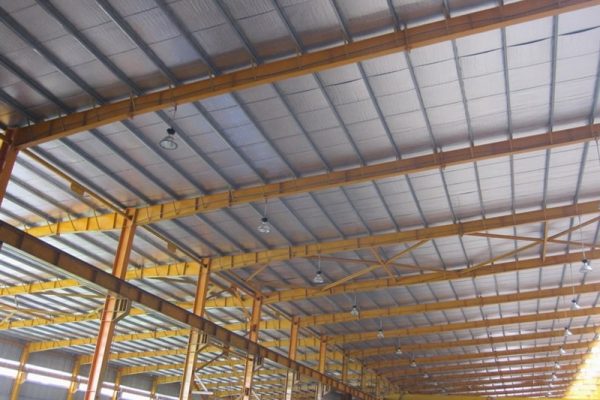

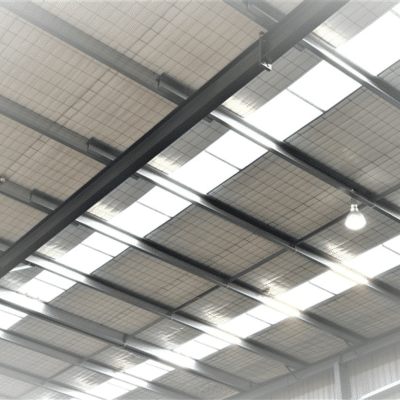

Silverzone is ideal for use as an insulation product fits to the underside of the roof of commercial sheds and buildings.

Stockist: The Insulation Warehouse

Resources - Downloads

Downloads

Links

Technical Properties

PropertyStandardValue
Nominal thickness8mm
Roll Sizes (m²)1200mm x 30m or 1200mm x 15m
Flammability indexAS1530.2-1993≤5
Fire RetardantYes
EmmisivityASTM C13710.03
ReflectivityASTM E 4080.97
Heat Resistance (R)under roof3.06 m2°C/W
Noise Reduction Coefficient55%
Fungal Resistance TestASTM C 1338No fungal growth
Vapour barrierYes
Durability (years)15
