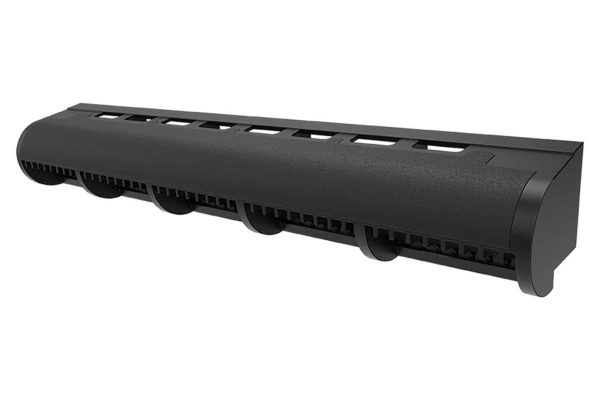

G2500N – Over Fascia Vent

Overview

The Vent Over Fascia Vent is the most practical and cost efficient method of ventilating the Eaves. It is easy to install, discrete and is compatible with either timber or metal fascias.

The G2500N is specifically designed for trussed roofs with pitches <15° and skillion roofs of any degree pitch.

The G2500N is designed to discreetly ensure a positive airflow of 25,000mm2 per linear metre into the roof space between the roof membrane and the fascia board. This product is ideal for new build and re-roofing situations. The G2500N are designed with 4mm evenly spaced openings specifically sized to prohibit large insects gaining access but wide enough to prevent capillary action.

The G2500N should be used in conjunction with other specified VENT products.

Refer to the DriSpace Internal Moisture Management Design Guide for more information.

DriSpace is the distributor of VENT NZ products in NZ.

Technical Properties

Documents

Dimensions

• It comes in 1m lengths
• 20 pieces (20 LM) per Carton

Installation

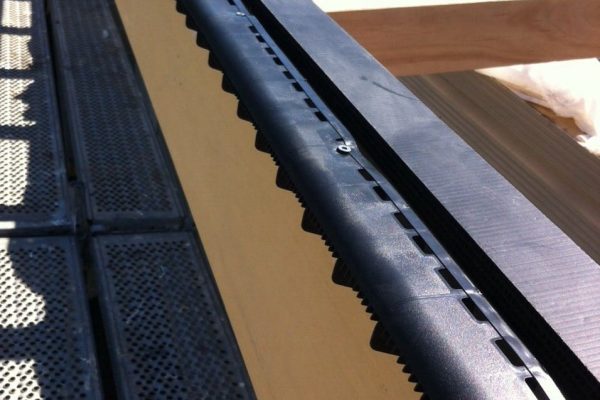

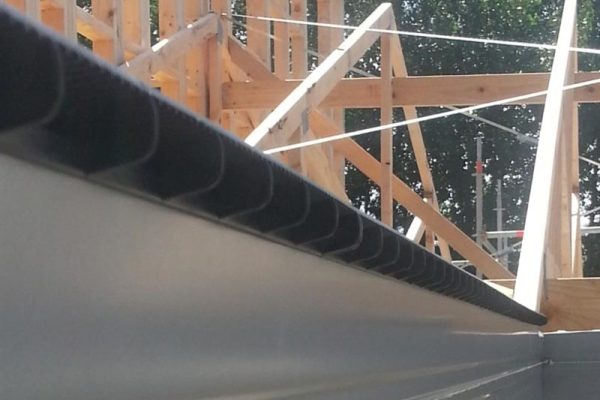

• The G2500N Over Fascia Ventilator should be nailed or screwed to the top of the fascia board through the fixing holes provided along the full length of the eaves.
• A minimum of 20mm gap between the bottom purlin and Over Fascia Vent is required for air flow into the roof cavity.
• It is compatible with both timber and steel fascia.
