G502CL – Insulation Guard/Roll Panel Vent/Eaves Baffle

Overview

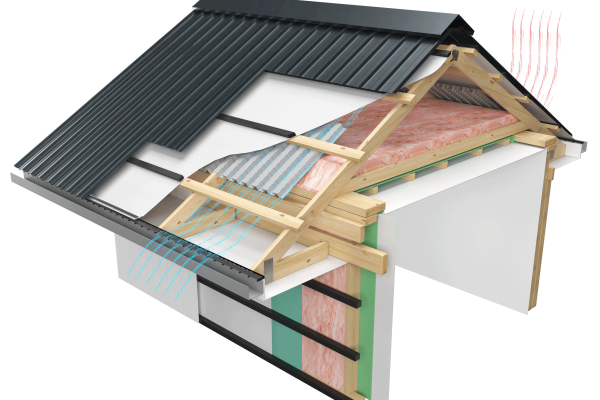

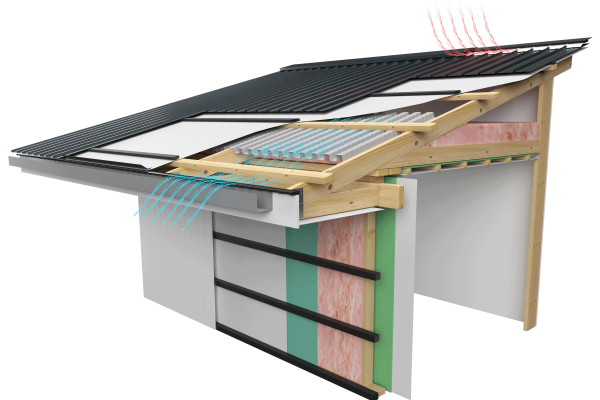

The VENT G502CL Insulation Guard/Roll Panel Vent/Eaves Baffle is designed to maintain a continuous 25mm air gap between the underside of the roofing membrane or sarking board and loft insulation at the eaves, providing a consistent flow of air into the roof space. G502CL is made using 90% recycled material.

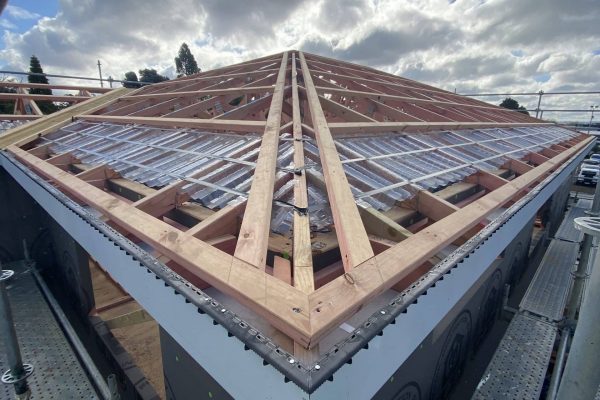

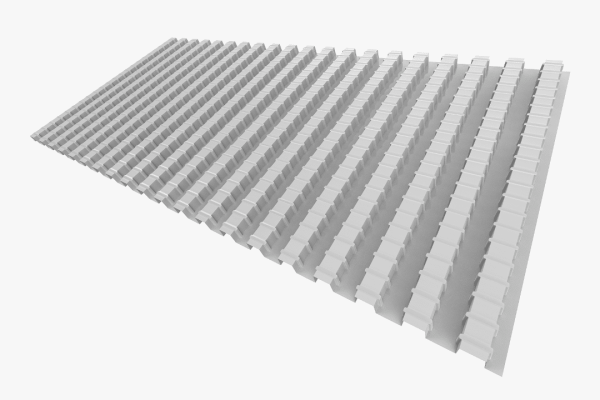

The G502CL castellated profile is laid across the top of the roof trusses/rafters parallel with the eaves level and is suitable for both new build and roof renovation projects. The extra width of the panel allows for better coverage when low pitch and deep insulation details are encountered.

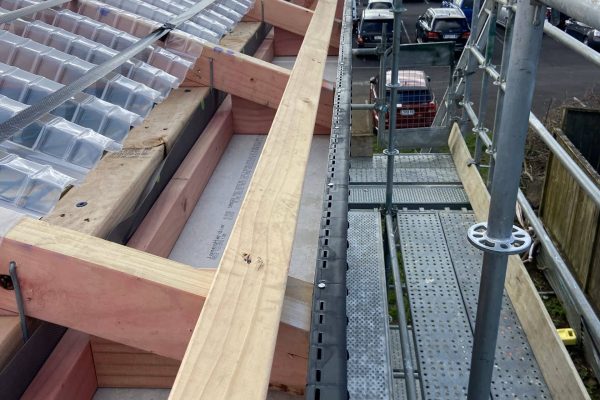

• Fixing – the G502CL Insulation Guard/Roll Panel Vent/Eaves Baffle should be rolled out over the full length of the eaves and adjusted to align with the required roof truss centres then nailed or stapled to secure in position.
• It should be used in conjunction with other fascia/soffit vents to provide a complete passive ventilation system.
• The Roll Panel Vent is compatible with steel and timber framing.

Refer to the DriSpace Moisture Management Design Guide for more information.

DriSpace is the distributor of VENT NZ products in NZ

Documents

Available Sizes

Merchant SKU’s

Returns Policy

We are more than happy to accept returns on Vent products, providing the following:

• Vent products may only be returned within 3 months from initial purchase date
• Vent products can only be returned in full, undamaged cartons, in a resalable condition.
• Any products returned, return freight is at the cost of the customer, and the original freight is to be invoiced to the customer.
• Return must be handled by the original purchasing store.

Once we have received the returned item and confirmed it is in a resalable state, we will credit the item.

Please make sure a credit and return request is sent to our team and acknowledged by us before proceeding with sending the items back.
